Mainly producing daily chemical machinery, pharmaceutical machinery, packaging machinery, food machinery and various stainless steel products.

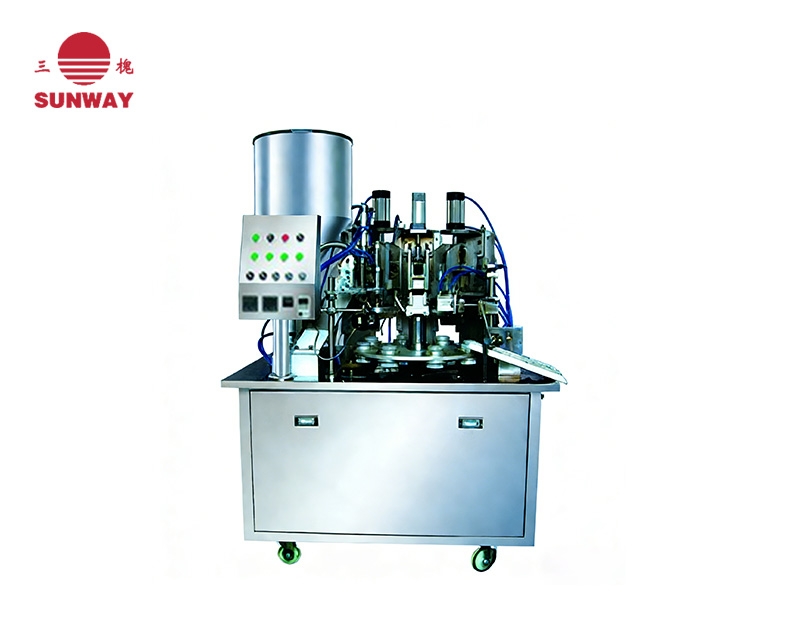

Main Purpose: This product is suitable for the automatic filling, sealing, trimming, and date printing of various plastic hoses and aluminum‑plastic composite hoses. It is widely used in the daily chemical, pharmaceutical, food, and chemical industries.
Contact UsMain Purpose: This product is suitable for the automatic filling, sealing, trimming, and date printing of various plastic hoses and aluminum‑plastic composite hoses. It is widely used in the daily chemical, pharmaceutical, food, and chemical industries.
Advantages: PLC program control ensures strong practicality and complete functionality, with neat and uniform seal appearance and high sealing strength. The equipment can be equipped with various filling heads of different specifications to meet the filling requirements of products with different viscosities.
Main Technical Parameters:
Type | B.GF-40 |
| Power Supply | 380 (220) V/50Hz |
| Power | 2.2kW |
| Air Consumption | ≤0.6 m³/min |
| Filling volume | 10-50ml、50-100ml、100-200ml |
| Metering precision | ≤±5%（Suitable for 10-50ml）、≤±3%（Suitable for 50-100ml）、≤±2%（Suitable for 100-200ml） |
| Productivity | 25-30 pcs/min |
| Tube size | φ16-φ50mm |
| Dimension (L×W×H) | 1100×850×1500mm |
| Weight | 300kg |
